Three Bays Stainless Steel Outdoor Telecom Cabinet With Three Front Doors
1. Cabinet Instructions
The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding,ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
2. Cabinet Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET202120235-EQ |
| Size | External Size:W×D×H: 2025mm×1200mm×2350mm |
| Component | The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount |
| Material | Single wall,1.2mm stainless steel 304 plate |
| Structure | - Six front doors, hidden zinc alloy hinge
- Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock (support padlock)
- Door stopper / wind lock is installed on the inside of the cabinet door
- Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
- Six compartments: each compartment includes 19" rack
- Equipped with cable manager
- Cable inlets at the bottom of cabinet
- Grounding Protection: copper bar
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification, outdoor anti-corrosion powder coating |
| Color | Grey RAL 7035 |
| Ingress Protection | IP65 |
| Working Temperature | -40°C～+85°C |
3. Cabinet Key Features
(1) Stainless Steel, single wall with insulation.
(2) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(3) All the cables used in the cabinet are made from flame retardant materials.
(4) Protection grade :IP55.
(5) Security design: Embedded doors, embedded hinges, 3-point security locks.

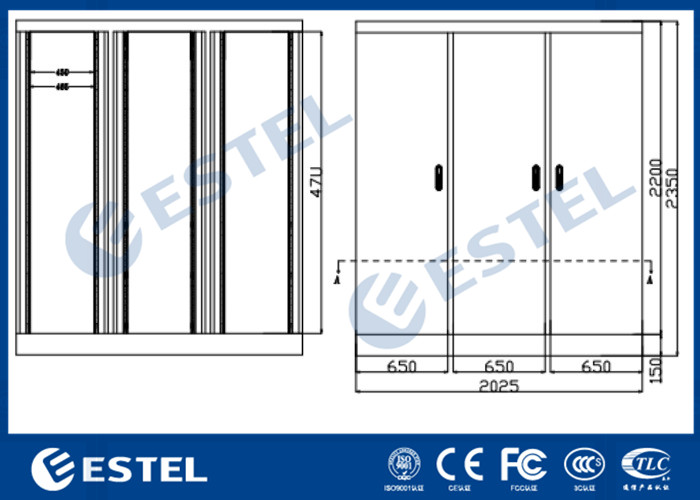

4. Cabinet Dimension
6.Cabinet Package
Wooden case with pallets.
7. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
