Assembled Type Galvanized Double Steel Outdoor Telecom Cabinet With Anti-theft Three-point Cabinet Lock
1. Cabinet Feature
- Attractive powder coat finish
- Galvanized steel base
- Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
- IP55 cabinet, walls and roof in double steel with high quality insulation
- High performance Air-conditioning unit for heat removal
- Door stopper to hold door open at service
2. Cabinet Dimension
Cabinet External Dimension (W×D×H): 900×900×2100mm.
3. Cabinet Introduction
3.1 Cabinet Material
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.
3.2 Cabinet Structure
The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.
3.3 Cabinet Door and Lock
The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.
4. Cabinet Parameters
4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
4.2 The cabinet cooling uses air conditioner.
4.3 Including -48VDC illumination lamp.
4.4 The cabinet includes power and environment monitoring unit, which can send power failure alarm, door open alarm, temperature and humidity alarm, smoke alarm, water alarm etc.
4.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
4.6 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
4.7The cabinet includes 19” standard installation rack.
4.8 Applicable environment conditions:
Operating temperature: -40°C ~ + 45°C
Storage temperature: -25°C ~ + 55°C
Transport temperature: -40°C ~ + 70°C
Relative humidity (RH): 5%~99%
5.Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.

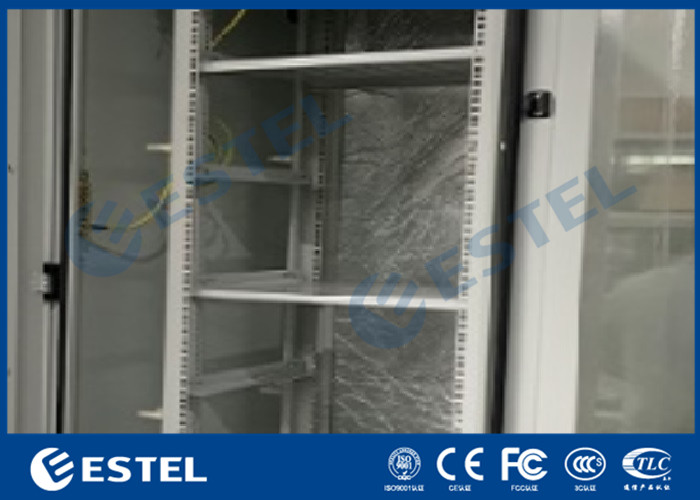

6.Internal Equipment Racking

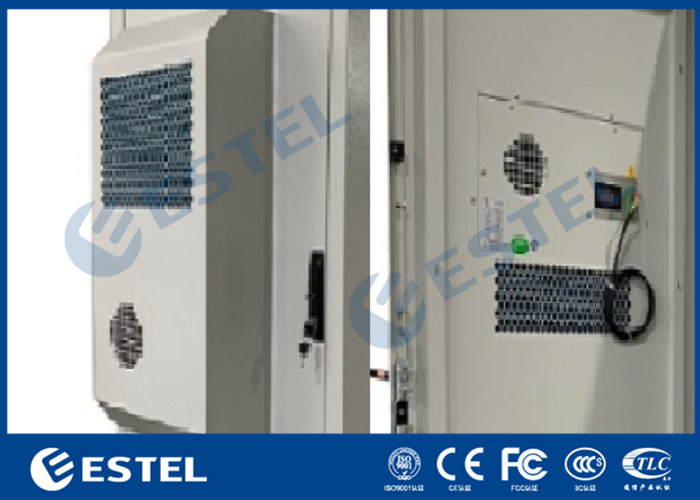

7. Cooling System
Air conditioner:1500W cooling capacity,240VAC.

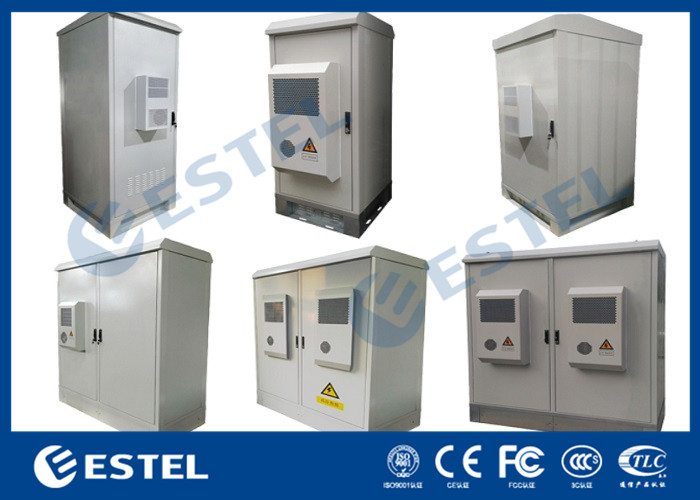

8. Related Cabinets Pictures
